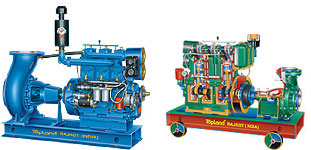

Diesel Pumpset - High Speed, Water-Cooled 37.5 & 45 HP
TECHNICAL DATA ( STANDARD PUMPSETS)
Petter Type, High Speed, Water-Cooled Diesel Pumpsets (Direct Coupled)
Sr.
No.		 Diesel Engine
HP / RPM
Model No.		 Pump Size (mm)
Type
Model No.		 Head (mtrs)
Duty Point &
Range		 Discharge (lps)
At Duty Point &
Range		 Pumpset Weigh
with M.S.B.F.
Nett / Gross (kgs)		 Pumpset Weight
with Trolley
Nett / Gross (kgs)
1 37.5 / 1500
375AW
375AWB		 200 x 150 (HVC) V86
(HD) (RR) (VSP)		 23
18 - 25		 80
100 - 50		 770 / 890
375AW - V86		 800 / 920 (6W)
375AW - V86
250 x 200 (HVC) V108
(HD) (RR)		 16.5
13 - 18		 125
140 - 75		 940 / 1060
375AW - V108		 970 / 1090 (6W)
375AW - V108
300 x 250 (HVC) V1210A
(HD) (RR)		 13.5
11 - 15		 139
155 - 80		 1060 / 1180
375AW - V1210A		 1090 / 1210 (6W)
375AW - V1210A
300 x 300 (HVC) V1212
(MFB) (HD)		 7.5
6 - 8.5		 225
250 - 150		 1235 / 1355
375AWB - V1212		 ---
2 45 / 1500
450AW
450AWB		 200 x 150 (HVC) V86A
(HD) (RR) (VSP)		 30
24 - 33		 75
90 - 45		 775 / 895
450AW - V86A		 805 / 925 (6W)
450AW - V86A
250 x 200 (HVC) V108A
(HD) (RR)		 19
15 - 21		 125
140 - 75		 945 / 1065
450AW - V108A		 975 / 1095 (6W)
450AW - V108A
300 x 250 (HVC) V1210B
(HD) (RR)		 15
12 - 16.5		 139
155 - 80		 1065 / 1185
450AW - V1210B		 1095 / 1215 (6W)
450AW - V1210B
300 x 300 (HVC) V1212A
(MFB) (HD)		 8
6.5 - 9		 250
275 - 175		 1240 / 1360
450AWB - V1212A		 ---
380 x 380 (HVC) V1515
(MFB) (HD)		 7.5
6 - 8.5		 275
325 - 200		 1430 / 1550
450AWB - V1515		 ---

  • VC = Volute Casing, Centre Delivery, Single Ball Bearing Gland type Pump (Centre Height 203.2mm)
  • OS = Volute Casing, Centre Delivery, Double Taper Bearing, Oil Seal Type Pump (Centre Height 203.2mm)
  • SC = Split Casing, Side Delivery, Double Ball Bearing, Gland Type Pump (Centre Height 203.2mm)
  • HVC = Heavy duty Volute Casing, Centre Delivery, Double Ball Bearing, Gland Type Pump
    (Centre Height - 3" x 2.5", 4" x 3" = 225mm | 8" x 6", 8" x 8" = 280mm | 10" x 8" = 355mm | 12" x 10" = 400mm | 12" x 12" = 740mm | 15" x 15" = 860mm )
  • MFB = 925 To 1025 RPM Mixed Flow Pump With  1500 To 1800 RPM Engine (V-Belt Driven Pumpset)
  • RR = Reverse Rotation Pumpset (Anti Clockwise - While Facing The Suction End)
  • VSP = Variable Speed Pumpset
  • HD = Heavy Duty Pump & Pumpset
  • 4W = Four Wheel Trolley
  • 6W = Six Wheel Trolley
(i) Gross Weight of Direct Coupled/ Belt Driven Pumpset Shown Above Includes Weight of Diesel Engine Packed in Wooden Case But Pump with M.S. Base Frame / Trolley in Loose Condition. The Complete Unit Packed in Single Wooden Case Would Result 7-12% Additional Increase in Total Gross Weight.
(ii) Indicated Head & discharge Are of Those Engine's Models Having HP Which Are Given in Nett / Gross Weight Columns.
(iii) *Models 'ISI' Marked
(iv) Head & Discharge = ** At 1600 RPM, *** At 1800 RPM & Remaining At 1500 RPM
