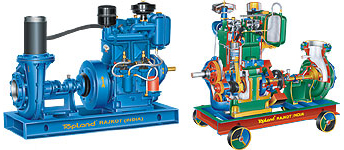

Diesel Pumpset - High Speed, Water-Cooled 10 to 25 HP
TECHNICAL DATA ( STANDARD PUMPSETS)
Petter Type, High Speed, Water-Cooled Diesel Pumpsets (Direct Coupled)
Sr.
No.		 Diesel Engine
HP / RPM
Model No.		 Pump Size (mm)
Type
Model No.		 Head (mtrs)
Duty Point &
Range		 Discharge (lps)
At Duty Point &
Range		 Pumpset Weigh
with M.S.B.F.
Nett / Gross (kgs)		 Pumpset Weight
with Trolley
Nett / Gross (kgs)
1 10 / 1500
31A, 72A		 65 x 50 (SC) S252HA
(OS) VM252HA (VSP) 		 32.5***
26 - 34		 12.5***
16 - 9		 285 / 350
83A - S252HA		 300 / 365 (4W)
83A - S252HA
80 x 65 (SC) S325H
(OS) VM325HA (VSP) 		 26
21 - 27.5		 16
21.5 - 15.5		 290 / 355
83A - S325H		 305 / 370 (4W)
83A - S352H
150 x 150 (VC) V66A
(SC) S66A, (OS)VM66A 		 10
8.5 - 11		 45
55 - 40		 305 / 370
83A - S66A		 320 / 385 (4W)
83A - S66A
2 13 / 1500
32A
73A		 80 x 65 (SC) S325HA
(OS) VM325HB (VSP) 		 28**
22.5 - 29.5		 18**
22 - 16		 295 / 360
84A - S325HA		 310 / 375 (4W)
84A - S325HA
100 x 80 (SC) S43H
(VSP) 		 24
19.5 - 25.5		 25
28 - 23.5		 300 / 365
84A - S43H		 315 / 380 (4W)
84A - S43H
150 x 150 (SC) S66B
(HD) 		 12
10 - 13		 45
55 - 40		 365 / 430
84A - S66B		 380 / 445 (4W)
84A - S66B
200 x 200 (HVC) V88
(HD) (RR) 		 7.7
6 - 8.5		 84
105 - 50		 420 / 485
84A - V88		 435 / 500 (4W)
84A - V88
3 16 / 1500
34A, 59A		 80 x 65 (SC) S325HB
(OS) VM325HC (VSP)		 34***
27 - 36		 20***
23.5 - 17.5		 300 / 365
89A - S325HB		 315 / 380 (4W)
89A - S325HB
100 x 80 (SC) S43HA
(VSP) 		 27**
21.5 - 28.5		 27**
29 - 24.5		 305 / 370
89A - S43HA		 320 / 385 (4W)
89A - S43HA
150 x 150 (SC) S66C
(HD)  		 15
12 - 16		 48
56 - 41		 370 / 435
89A - S66C		 385 / 450 (4W)
89A - S66C
200 x 200 (HVC) V88A
(HD) (RR)		 8.5
6.5 - 9.5		 88
110 - 55		 425 / 490
89A - V88A		 440 / 505 (4W)
89A - V88A
4 20 / 1500
36A
86A
35A
60A		 80 x 65 (HVC) V325EH
(HD) (RR) (VSP)		 60***
48 - 66		 10***
15 - 6		 455 / 550
36A - V325EH		 475 / 570 (4W)
36A - V325EH
100 x 80 (HVC) V43EH
(HD) (RR) (VSP)		 30
24 - 33		 29
35 - 20		 470 / 565
36A - V43EH		 490 / 585 (4W)
36A - V43EH
150 x 150 (SC) S66D
(HD)  		 20
17 - 21		 48
58 - 42		 455 / 550
36A - S66D		 475 / 570 (4W)
36A - S66D
200 x 200 (HVC) V88B
(HD) (RR)		 13.9
11 - 15.5		 87
110 - 55		 520 / 615
36A - V88B		 540 / 635 (4W)
36A - V88B
5 25 / 1500
38A
87A
37A
75A		 100 x 80 (HVC) V43EHA
(HD) (RR) (VSP)		 40***
32 - 44		 29***
35 - 20		 475 / 570
38A - V43EHA		 495 / 590 (4W)
38A - V43EHA
150 x 150 (SC) S66E
(HD) (VSP)		 25
20 - 26.5		 50
60 - 43		 460 / 555
38A - S66E		 480 / 575 (4W)
38A - S66E
200 x 200 (HVC) V88C
(HD) (RR)		 14
11.5 - 16		 90
112 - 57		 525 / 620
38A - V88C		 545 / 640 (4W)
38A - V88C
300 x 250 (HVC) V1210
(HD) (RR)		 8.5
6.5 - 9.5		 138.5
155 - 80		 835 / 930
38A - V1210		 865 / 960 (6W)
38A - V1210

  • VC = Volute Casing, Centre Delivery, Single Ball Bearing Gland type Pump (Centre Height 203.2mm)
  • OS = Volute Casing, Centre Delivery, Double Taper Bearing, Oil Seal Type Pump (Centre Height 203.2mm)
  • SC = Split Casing, Side Delivery, Double Ball Bearing, Gland Type Pump (Centre Height 203.2mm)
  • HVC = Heavy duty Volute Casing, Centre Delivery, Double Ball Bearing, Gland Type Pump
    (Centre Height - 3" x 2.5", 4" x 3" = 225mm | 8" x 6", 8" x 8" = 280mm | 10" x 8" = 355mm | 12" x 10" = 400mm | 12" x 12" = 740mm | 15" x 15" = 860mm )
  • MFB = 925 To 1025 RPM Mixed Flow Pump With  1500 To 1800 RPM Engine (V-Belt Driven Pumpset)
  • RR = Reverse Rotation Pumpset (Anti Clockwise - While Facing The Suction End)
  • VSP = Variable Speed Pumpset
  • HD = Heavy Duty Pump & Pumpset
  • 4W = Four Wheel Trolley
  • 6W = Six Wheel Trolley
(i) Gross Weight of Direct Coupled/ Belt Driven Pumpset Shown Above Includes Weight of Diesel Engine Packed in Wooden Case But Pump with M.S. Base Frame / Trolley in Loose Condition. The Complete Unit Packed in Single Wooden Case Would Result 7-12% Additional Increase in Total Gross Weight.
(ii) Indicated Head & discharge Are of Those Engine's Models Having HP Which Are Given in Nett / Gross Weight Columns.
(iii) *Models 'ISI' Marked
(iv) Head & Discharge = ** At 1600 RPM, *** At 1800 RPM & Remaining At 1500 RPM
