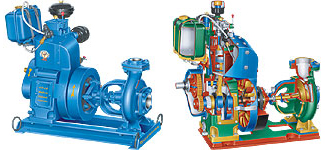

Diesel Pumpset - High Speed, Water-Cooled
& Air-Cooled, Light Weight 3 to 5 HP
|
|
TECHNICAL DATA ( STANDARD PUMPSETS) |
Mini
Petter Type, High Speed, W/C, Light Weight Diesel Pumpsets
"TOPLAND-92' (Direct Coupled) |
Sr.
No. |
Diesel
Engine
HP / RPM
Model No. |
Pump
Size (mm)
Type
Model No. |
Head
(mtrs)
Duty Point &
Range |
Discharge
(lps)
At Duty Point &
Range |
Pumpset
Weight with M.S.B.F. |
Pumpset
Weight
with Trolley |
Nett
(kgs) |
Gross
(kgs) |
Nett
(kgs) |
Gross
(kgs) |
| 1 |
3
/ 1500
98A (A/C)
3.5 / 1500
94A (A/C)
|
50
x 50 (VC)
VS22 |
11
9 - 12 |
7
9 - 5 |
125 |
175 |
135
(2W)
140 (4W) |
185
(2W)
190 (4W) |
65
x 50 (VC)
VS252A* |
11
9 - 12 |
10
12 - 8 |
80
x 65 (VC)
VS325A* |
10
8.5 - 11 |
14
16 - 12 |
| 2 |
4.5
/ 2050
95A (A/C) |
60
x 50 (VC)
VS252* |
16
13.5 - 17 |
11
14 - 8 |
125 |
175 |
135
(2W)
140 (4W) |
185
(2W)
190 (4W) |
| 3 |
5
/ 2150
96A (A/C) |
80
x 65 (VC)
VS325* |
16
13.5 - 17 |
13
16 - 10 |
125 |
175 |
135
(2W)
140 (4W) |
185
(2W)
190 (4W) |
80
x 80 (VC)
VS33 |
15
12.5 - 16 |
15
18 - 12.5 |
|
- VC = Volute Casing, Centre
Delivery, Single Ball Bearing Gland type Pump (Centre Height 150mm)
- OS = Volute Casing, Centre
Delivery, Double Taper Bearing, Oil Seal Type Pump (Centre Height 170mm)
- VM = Volute Casing, Centre
Delivery, Combined Unit, Mechanical Seal Type Monoset (Centre Height 170mm)
- SC = Split Casing, Side
Delivery, Double Ball Bearing, Gland Type Pump (Centre Height 203.2mm)
- 2W = Two Wheel Trolley
- 4W = Four Wheel Trolley
- W/C = Water-Cooled Diesel
Engine
- A/C = Air-Cooled Diesel Engine
- VSP = Variable Speed Pumpset
(Heat & Discharge At 1625 RPM)
|
(i) Gross Weight of Direct
Coupled/ Belt Driven Pumpset Shown Above Includes Weight of Diesel Engine Packed
in Wooden Case But Pump with M.S. Base Frame / Trolley in Loose Condition. The
Complete Unit Packed in Single Wooden Case Would Result 10-12% Additional
Increase in Total Gross Weight.
(ii) *Models 'ISI' Marked
(iii) **Head & Discharge At 1500 RPM
|
|
|
