Diesel Monoset Pumps - High Speed, Water-Cooled
& Air-Cooled, Light Weight 5 to 7.5 HP
|
|
TECHNICAL DATA ( STANDARD PUMPSETS) |
Mini

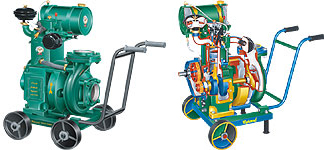

Petter Type, High Speed, W/C, Light Weight Diesel Monobloc Pumpsets
"TOPLAND-99' (Combined Unit) |
Sr.
No. |
Diesel
Engine Monoset Pump (Monobloc)
Model
No. |
Monobloc
Pump Size (mm)
Type
HP / RPM |
Head
(mtrs)
Duty Point &
Range |
Discharge
(lps)
At Duty Point &
Range |
Pumpset
Weight
with M.S.B.F. |
Pumpset
Weight
with Trolley |
Nett
(kgs) |
Gross
(kgs) |
Nett
(kgs) |
Gross
(kgs) |
| 1 |
50M325
65M325 |
80
x 65 (VM)
5/100, 6.5/1600 |
16**
13.5 - 17 |
16**
18 - 13 |
155 |
215 |
165
(2W)
170 (4W) |
225
(2W)
230 (4W) |
50M33
65M33 |
80
x 80 (VM)
5/100, 6.5/1600 |
15**
12.5 - 16 |
16.5**
19 - 13 |
50M44
65M44 |
100
x 100 (VM)
5/100, 6.5/1600 |
12**
9.5 - 13 |
20**
24 - 15 |
160 |
220 |
170
(2W)
175 (4W) |
230
(2W)
235 (4W) |
| 2 |
75MA325
80MA325 |
80
x 65 (VM)
7.5 & 8/1800 |
21
17 - 22 |
17
20 - 13 |
155 |
215 |
165
(2W)
170 (4W) |
225
(2W)
230 (4W) |
75MA33
80MA33 |
80
x 80 (VM)
7.5 & 8/1800 |
20
16 - 21 |
19
23 - 15 |
75MA44
80MA44 |
100
x 100 (VM)
7.5 & 8/1800 |
14
11.5 - 15 |
20.5
25 - 17 |
160 |
220 |
170
(2W)
175 (4W) |
230
(2W)
235 (4W) |
| 3 |
75M325H
(VSP)
80M325H (VSP) |
80
x 65 (VM)
7.5/1500 & 8/1600 |
28
22.5 - 29.5 |
11
15 - 6 |
160 |
220 |
170
(2W)
175 (4W) |
230
(2W)
235 (4W) |
75M44
80M44 |
100
x 100 (VM)
7.5/1500 & 8/1600 |
14**
11.5 - 15 |
20.5**
25 - 16 |
75MA66
80MA66 |
150
x 150 (VM)
7.5/1500 & 8/1600 |
8**
6.5 - 8.5 |
40**
50 - 35 |
180 |
240 |
190
(2W)
195 (4W) |
250
(2W)
255 (4W) |
| 4 |
90M44 |
100
x 100 (VM)
9/1800 |
18
14.5 - 19 |
21
26 - 18 |
160 |
220 |
170
(2W)
175 (4W) |
230
(2W)
235 (4W) |
| 90M66 |
150
x 150 (VM)
9/1800 |
9
7.5 - 9.5 |
45
53 - 40 |
180 |
240 |
190
(2W)
195 (4W) |
250
(2W)
255 (4W) |
|
- VC = Volute Casing, Centre
Delivery, Single Ball Bearing Gland type Pump (Centre Height 150mm)
- OS = Volute Casing, Centre
Delivery, Double Taper Bearing, Oil Seal Type Pump (Centre Height 170mm)
- VM = Volute Casing, Centre
Delivery, Combined Unit, Mechanical Seal Type Monoset (Centre Height 170mm)
- SC = Split Casing, Side
Delivery, Double Ball Bearing, Gland Type Pump (Centre Height 203.2mm)
- 2W = Two Wheel Trolley
- 4W = Four Wheel Trolley
- W/C = Water-Cooled Diesel
Engine
- A/C = Air-Cooled Diesel Engine
- VSP = Variable Speed Pumpset
(Heat & Discharge At 1625 RPM)
|
(i) Gross Weight of Direct
Coupled/ Belt Driven Pumpset Shown Above Includes Weight of Diesel Engine Packed
in Wooden Case But Pump with M.S. Base Frame / Trolley in Loose Condition. The
Complete Unit Packed in Single Wooden Case Would Result 10-12% Additional
Increase in Total Gross Weight.
(ii) *Models 'ISI' Marked
(iii) **Head & Discharge At 1500 RPM
|
|
|
