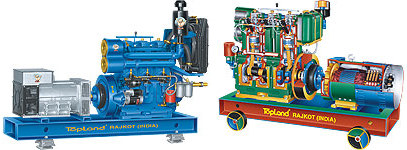

Diesel Gensets - High Speed, Water-Cooled
 - 17.5 kVA to 35 kVA [1 & 3 Phase]
TECHNICAL DATA ( STANDARD GENSETS)
Petter Type, High Speed, Water-Cooled Diesel Gensets (Direct Coupled)
1-Phase, 240 Volts, 1500 RPM, 50 Hz, 4 Poles & 1.0 Unity Power Factor
Sr.
No.		 Genset
Model No.
Resistive Type & Inductive Type		 A.C. Generator Data kVA (kW) (Max.-Amp) &
Model No. R & I Type		 Diesel Engine Data
HP (kW) (No. Of Cyl.)
&
Model No.		 Resistive Type
Genset Weight with M.S.Base Frame
Nett/Gross (kgs)		 Inductive Type
Genset Weight with M.S.Base Frame
Nett/Gross (kgs)
1 300AWBS1-I
300AWS1-I		 17.5 (17.5) (72.9)
175KS-I		 30.0 (22.0) (Three)
300AWB, 300AW		 --- 710 / 1070
300AWBS1-I, 300AWS1-I
2 300AWBS-I
300AWS-I		 20.0 (20.0) (83.3)
200KS-I		 30.0 (22.0) (Three)
300AWB, 300AW		 --- 800 / 1080
300AWBS-I, 300AWS-I
3 375AWBS1-I
375AWS1-I		 22.5 (22.5) (93.8)
225KS-I		 37.5 (27.6) (Three)
375AWB, 375AW		 --- 830 / 1110
375AWBS1-I, 375AWS1-I
4 375AWBS-I
375AWS-I		 25.0 (25.0) (104.2)
250KS-I		 37.5 (27.6) (Three)
375AWB, 375AW		 --- 850 / 1130
375AWBS-I, 375AWS-I
5 450AWBS-I
450AWS-I		 27.5 (27.5) (114.6)
275KS-I		 45.0 (33.0) (Three)
450AWB, 450AW		 --- 870 / 1150
450AWBS-I, 450AWS-I
3-Phase, 415 Volts, 50 Hz, 4 Poles & 0.8 Power Factor (Lagging)
6 300AWBT1-I
300AWT1-I		 22.5 (18.0) (31.3)
225KT-I		 30.0 (22.0) (Three)
300AWB, 300AW		 --- 775 / 1055
300AWBT1-I, 300AWT1-I
7 300AWBT-I
300AWT-I		 25.0 (20.0) (34.8)
250KT-I		 30.0 (22.0) (Three)
300AWB, 300AW		 --- 785 / 1065
300AWBT-I, 300AWT-I
8 375AWBT1-I
375AWT1-I		 27.5 (22.0) (38.3)
275KT-I		 37.5 (27.6) (Three)
375AWB, 375AW		 --- 800 / 1080
375AWBT1-I, 375AWT1-I
9 375AWBT-I
375AWT-I		 30.0 (24.0) (41.7)
300KT-I		 37.5 (27.6) (Three)
375AWB, 375AW		 --- 810 / 1090
375AWBT-I, 375AWT-I
10 450AWBT1-I
450AWT1-I		 32.5 (26.0) (45.2)
325KT-I		 45.0 (33.0) (Three)
450AWB, 450AW		 --- 820 / 1100
450AWBT1-I, 450AWT1-I
11 450AWBT-I
450AWT-I		 35.0 (28.0) (48.7)
350KT-I		 45.0 (33.0) (Three)
450AWB, 450AW		 --- 830 / 1110
450AWBT-I, 450AWT-I


Note = All Above Diesel Engines Computerised With Gensets Are Having Governing Class A2 & Radiator Cooling Arrangement.

(i) Resistive (Load) Type A.C.Generators Are Made of M.S. body & Are Double Ball Bearing Type. These Are Self Excited, Drip Prrof, Screen Protected & Self Ventilated. Class of Winding is 'F' & Are Diode Type. The Degree of Protection is IP21. Voltage regulation is +/- 10%
Resistive (Load) Type Diesel Gensets Are Suitable For Light Duty / Low Torque Load Applications Such As Lightening, Electric Fans & Other Light Duty Domestic Loads etc...

(ii) Inductive (Load) Type A.C.Generators Are Made of Aluminium body & Are Double Ball Bearing Type. These Are Self Excited, Drip Proof, Screen Protected & Self Ventilated. Class of Winding is 'H' & Are Transformer Type. The Degree of Protection is IP23. Voltage regulation is +/- 5%
Brushless with AVR (Automatic Voltage Regulator) Type A.C. Generators Instead of Transformer Type A.C. Generators Can Also Be Made Available With Voltage Regulation +/- 1%.
Inductive (Load) Type Diesel Gensets Are Suitable For Heavy Duty / High Torque Load Applications Such As For Running Electric Motors, Submersible Pumpsets, Air-Conditioners etc...
For Any Type of Long Duration High Torque Load, Technically Different Specification & Site conditions, Diesel Genset Has To Be Selected Accordingly. For Such Application Kindly contact US for Right Selection.

(iii) These A.C.Generators / Welding Generators Are Suitable For Running Under Ambient Temperature Less Than 40 Degree & Altitude Less Than 1000 Metres.

(iv) In Case, Resistive Or Inductive Type Genset Is Mounted On Rubber Wheel Trolley Instead Of M.S.Base Frame, The Additional Nett / Gross Weight Will Be As Under :
(a) For Genset With 1/2 cylinder Engine Mounted On 4 Rubber Wheel Trolley 15 kgs. Extra
(b) For Genset With 2/3 cylinder Engine Mounted On 6 Rubber Wheel Trolley 22.5 kgs. Extra
(c) For Genset With 3 cylinder Engine Mounted On 8 Rubber Wheel Trolley 30 kgs. Extra
