Diesel Gensets - High Speed, Water-Cooled
- 3.5 kVA to 10 kVA [1 & 3 Phase]
|
|
TECHNICAL DATA ( STANDARD GENSETS) |
| Petter
Type, High Speed, Water-Cooled Diesel Gensets (Direct Coupled) |
| 1-Phase,
240 Volts, 1500 RPM, 50 Hz, 4 Poles & 1.0 Unity Power Factor |
Sr.
No. |
Genset
Model No.
Resistive Type &
Inductive Type |
A.C.
Generator Data kVA (kW) (Max.-Amp) &
Model No. R & I Type |
Diesel
Engine Data
HP (kW) (No. Of Cyl.)
&
Model No. |
Resistive
Type
Genset Weight with M.S.Base Frame
Nett/Gross (kgs) |
Inductive
Type
Genset Weight with M.S.Base Frame
Nett/Gross (kgs) |
| 1 |
52AS-R
62AS-R |
3.5
(3.5) (14.6)
35KS-R |
6.5
(4.8) (One)
52A, 62A |
325
/ 510
52AS-R, 62AS-R |
--- |
| 2 |
83AS1-R
83AS1-I |
5.0
(5.0) (20.8)
50KS-R, 50KS-I |
10.0
(7.35) (One)
83A |
370
/ 555
83AS1-R |
375
/560
83AS1-I |
| 3 |
83AS-R
83AS-I |
6.0
(6.0) (25.0)
60KS-R, 60KS-I |
10.0
(7.35) (One)
83A |
375
/560
83AS-R |
380
/ 565
83AS-I |
| 4 |
84AS-R
84AS-I |
7.5
(7.5) (31.3)
75KS-R, 75KS-I |
12.5
(9.2) (One)
84A |
390
/ 575
84AS-R |
395
/ 580
84AS-I |
| 5 |
89AS-R
89AS-I |
7.5
(7.5) (31.3)
75KS-R, 75KS-I |
15.0
(11.0) (One)
89A |
395
/ 580
89AS-R |
400
/ 585
89AS-I |
| 3-Phase,
415 Volts, 50 Hz, 4 Poles & 0.8 Power Factor (Lagging) |
| 6 |
69AT-R
70AT-R |
5.0
(4.0) (7.0)
50KT-R |
7.5
(5.5) (One)
69A, 70A |
335
/ 520 (69AT-R)
345
/ 530 (70AT-R) |
--- |
| 7 |
83AT1-R
83AT1-I |
6.5
(5.2) (9.0)
65KT-R, 65KT-I |
10.0
(7.35) (One)
83A |
380
/ 565
83AT1-R |
365
/ 550
83AT1-I |
| 8 |
83AT-R
83AT-I |
7.5
(6.0) (10.4)
75KT-R, 75KT-I |
10.0
(7.35) (One)
83A |
390
/ 575
83AT-R |
375
/ 560
83AT-I |
| 9 |
84AT1-R
84AT1-I |
8.7
(7.0) (12.2)
87KT-R, 87KT-I |
12.5
(9.2) (One)
84A |
400
/ 585
84AT-R |
385
/ 570
84AT1-I |
| 10 |
84AT-R
84AT-I |
10.0
(8.0) (13.9)
100KT-R, 100KT-I |
12.5
(9.2) (One)
84A |
405
/ 590
84AT1-R |
390
/ 575
84AT-I |
| 11 |
89AT-R
89AT-I |
10.0
(8.0) (13.9)
100KT-R, 100KT-I |
15.0
(11.0) (One)
89A |
410
/ 595
89AT-R |
390
/ 580
89AT-I |
|
| Note = All Above Diesel Engines Computerised With
Gensets Are Having Governing Class A2 & Radiator Cooling Arrangement. |
|
(i) Resistive (Load) Type A.C.Generators Are Made
of M.S. body & Are Double Ball Bearing Type. These Are Self Excited, Drip
Prrof, Screen Protected & Self Ventilated. Class of Winding is 'F' & Are
Diode Type. The Degree of Protection is IP21. Voltage regulation is +/- 10%
Resistive (Load) Type Diesel Gensets Are Suitable For Light Duty / Low Torque
Load Applications Such As Lightening, Electric Fans & Other Light Duty
Domestic Loads etc...
(ii) Inductive (Load) Type A.C.Generators Are
Made of Aluminium body & Are Double Ball Bearing Type. These Are Self
Excited, Drip Proof, Screen Protected & Self Ventilated. Class of Winding is
'H' & Are Transformer Type. The Degree of Protection is IP23. Voltage
regulation is +/- 5%
Brushless with AVR (Automatic Voltage Regulator) Type A.C. Generators Instead of
Transformer Type A.C. Generators Can Also Be Made Available With Voltage
Regulation +/- 1%.
Inductive (Load) Type Diesel Gensets Are Suitable For Heavy Duty / High Torque
Load Applications Such As For Running Electric Motors, Submersible Pumpsets,
Air-Conditioners etc...
For Any Type of Long Duration High Torque Load, Technically Different
Specification & Site conditions, Diesel Genset Has To Be Selected
Accordingly. For Such Application Kindly contact US for Right Selection.
(iii) These A.C.Generators / Welding Generators Are Suitable For Running Under
Ambient Temperature Less Than 40 Degree & Altitude Less Than 1000 Metres.

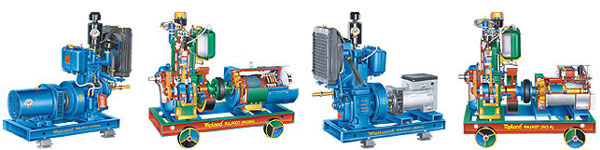

(iv) In Case, Resistive Or Inductive Type Genset
Is Mounted On Rubber Wheel Trolley Instead Of M.S.Base Frame, The Additional
Nett / Gross Weight Will Be As Under :
(a) For Genset With 1/2 cylinder Engine Mounted On 4 Rubber Wheel Trolley 15 kgs.
Extra
(b) For Genset With 2/3 cylinder Engine Mounted On 6 Rubber Wheel Trolley 22.5
kgs. Extra
(c) For Genset With 3 cylinder Engine Mounted On 8 Rubber Wheel Trolley 30 kgs.
Extra
|
|
|
