Diesel Gensets - High Speed, Water-Cooled & Air-Cooled [FTA] Light Weight
 - 3.5 kVA to 12.5 kVA [1 & 3 Phase]
TECHNICAL DATA ( STANDARD GENSETS)

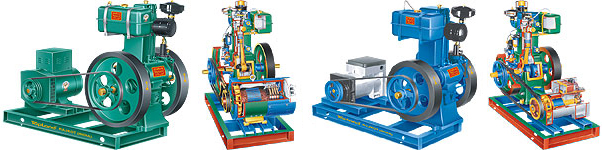

Lister Type, Slow Speed, Water-Cooled Diesel Gensets "TOPLAND-99' (V-Belt Driven)
1-Phase, 240 Volts, 50 Hz, 4 Poles & 1.0 Unity Power Factor
Sr.
No.		 Resistive & Inductive Genset
Model No.		 A.C. Generator Data (1500 RPM) kVA (kW) (Max.-Amp)
Model No. R & I Type		 Diesel Engine Data HP (kW) (No. Of Cyl.)
&
Model No. (RPM)		 Pully diameter (mm) Resistive Genset Weight with M.S.Base Frame Nett/Gross (kgs) Inductive Genset Weight with M.S.Base Frame Nett/Gross (kgs)
On Engine On A.C. Gen.
1 10AS-R 3.5 (3.5) (14.6)
35KS-R		 6.0 (4.4) (One)
10A (650 RPM)		 355.6 152.4 440 / 550
10AS-R		 ---
2 16AS1-R
16AS1-I		 5.0 (5.0) (20.8)
50KS-R, 50KS-I		 10.0 (7.35) (One)
16A (1000 RPM)		 304.8 203.2 485 / 595
16AS1-R		 480 / 590
16AS1-I
3 16AS-R
16AS-I		 6.0 (6.0) (25.0)
60KS-R, 60KS-I		 10.0 (7.35) (One)
16A (1000 RPM)		 304.8 203.2 490 / 600
16AS-R		 485 / 595
16AS-I
4 28AS-R
28AS-I		 7.5 (7.5) (31.3)
75KS-R, 75KS-I		 14.0 (10.3) (One)
28A (1000 RPM)		 304.8 203.2 550 / 660
28AS-R		 545 / 655
28AS-I
5 29ADIS-R
29ADIS-I		 7.5 (7.5) (31.3)
75KS-R, 75KS-I		 15.0 (11.0) (One)
28ADI (1000 RPM)		 304.8 203.2 545 / 655
29ADIS-R		 540 / 650
29ADIS-I
3-Phase, 415 Volts, 50 Hz, 4 Poles & 0.8 Power Factor (Lagging)
6 12AT-R 5.0 (4.0) (7.0)
50KT-R		 8.0 (5.9) (One)
12A (850 RPM)		 355.6 203.2 460 / 570
12AT-R		 ---
7 16AT1-R
16AT1-I		 6.5 (5.2) (9.0)
65KT-R, 65KT-I		 10.0 (7.35) (One)
16A (1000 RPM)		 304.8 203.2 495 / 605
16AT1-R		 480 / 590
16AT1-I
8 16AT-R
16AT-I		 7.5 (6.0) (10.4)
75KT-R, 75KT-I		 10.0 (7.35) (One)
16A (1000 RPM)		 304.8 203.2 500 / 610
16AT-R		 485 / 595
16AT-I
9 11AT-R
11AT-I		 8.7 (7.0) (12.2)
87KT-R, 87KT-I		 12.0 (8.8) (One)
11A (1000 RPM)		 304.8 203.2 535 / 645
11AT-R		 520 / 630
11AT-I
10 28AT1-R
28AT1-I		 8.7 (7.0) (12.2)
87KT-R, 87KT-I		 14.0 (10.3) (One)
28A (1000 RPM)		 304.8 203.2 555 / 665
28AT1-R		 550 / 650
28AT1-I
11 28AT-R
28AT-I		 10.0 (8.0) (13.9)
100KT-R, 100KT-I		 14.0 (10.3) (One)
28A (1000 RPM)		 304.8 203.2 560 / 670
28AT-R		 545 / 655
28AT-I
12 29ADIT-R
29ADIT-I		 10.0 (8.0) (13.9)
100KT-R, 100KT-I		 15.0 (11.0) (One)
29ADI (1000 RPM)		 304.8 203.2 555 / 665
29ADIT-R		 540 / 650
29ADIT-I
13 30ADIT-R
30ADIT-I		 12.5 (10.0) (17.4)
125KT-R, 125KT-I		 16.0 (11.8) (One)
30ADI (1000 RPM)		 304.8 203.2 610 / 720
30ADIT-R		 555 / 665
30ADIT-R

Note = All Above Diesel Engines Directly Coupled in Water/Air-Cooled Gensets / Welding Gensets Are Having Governing Class A2. Radiator Cooling system is Provided with Directly Coupled Water-Cooled Gensets / Welding Gensets.
  • FTA = Fan Type Air-Cooled
  • BTA = Blower Type Air-Cooled
  • 4RT = Four Rubber Wheel Trolley
  • W/C = Water-Cooled Diesel Engine
  • A/C = Air-Cooled Diesel Engine

(i) Resistive (Load) Type A.C.Generators Are Made of M.S. body & Are Double Ball Bearing Type. These Are Self Excited, Drip Prrof, Screen Protected & Self Ventilated. Class of Winding is 'F' & Are Diode Type. The Degree of Protection is IP21. Voltage regulation is +/- 10%
Resistive (Load) Type Diesel Gensets Are Suitable For Light Duty / Low Torque Load Applications Such As Lightening, Electric Fans & Other Light Duty Domestic Loads etc...

(ii) Inductive (Load) Type A.C.Generators Are Made of Aluminium body & Are Double Ball Bearing Type. These Are Self Excited, Drip Proof, Screen Protected & Self Ventilated. Class of Winding is 'H' & Are Transformer Type. The Degree of Protection is IP23. Voltage regulation is +/- 5%
Brushless with AVR (Automatic Voltage Regulator) Type A.C. Generators Instead of Transformer Type A.C. Generators Can Also Be Made Available With Voltage Regulation +/- 1%.
Inductive (Load) Type Diesel Gensets Are Suitable For Heavy Duty / High Torque Load Applications Such As For Running Electric Motors, Submersible Pumpsets, Air-Conditioners etc...
For Any Type of Long Duration High Torque Load, Technically Different Specification & Site conditions, Diesel Genset Has To Be Selected Accordingly. For Such Application Kindly contact US for Right Selection.

(iii) Wleding Generatos Are Specially Designed For Direct Welding Without Any Transformer. It Has A Voltage Regulator To Adjust The Required Output voltage. It Also Has The Provision For Domestic Application i.e. Lightening, Fans & Other Light Duty Appliances Having Single Phase (50Hz & 10 U.P.F.) Low Torque Loads etc...

(iv) These A.C.Generators / Welding Generators Are Suitable For Running Under Ambient Temperature Less Than 40 Degree & Altitude Less Than 1000 Metres.

(v) Gross Weight Of Belt Driven Genset / Welding Genset Shown Above Includes Weight Of Diesel Engine Packed in Wooden Case But A.C.Generator / Welding Generator With M.S.Base Frame In Loose Condition. The Complete Unit Packed In Single Wooden Case Would Result 7-12% Approx. Additional Increase In Total Gross Weight.

(vi) In Case, Directly Coupled Welding Genset Is Mounted On Rubber Wheel Trolley Instead Of M.S.Base Frame, The Additional Nett / Gross Weight Will Be As Under :
(a) For Welding Genset With 1/2 cylinder Engine Mounted On 4 Rubber Wheel Trolley 15 kgs. Extra
(b) For Welding Genset With 2 cylinder Engine Mounted On 6 Rubber Wheel Trolley 22.5 kgs. Extra
