(i) Resistive (Load) Type
A.C.Generators Are Made of M.S. body & Are Double Ball Bearing Type. These
Are Self Excited, Drip Prrof, Screen Protected & Self Ventilated. Class of
Winding is 'F' & Are Diode Type. The Degree of Protection is IP21. Voltage
regulation is +/- 10%
Resistive (Load) Type Diesel Gensets Are Suitable For Light Duty / Low Torque
Load Applications Such As Lightening, Electric Fans & Other Light Duty
Domestic Loads etc...
(ii) Inductive (Load) Type
A.C.Generators Are Made of Aluminium body & Are Double Ball Bearing Type.
These Are Self Excited, Drip Proof, Screen Protected & Self Ventilated.
Class of Winding is 'H' & Are Transformer Type. The Degree of Protection is
IP23. Voltage regulation is +/- 5%
Brushless with AVR (Automatic Voltage Regulator) Type A.C. Generators Instead of
Transformer Type A.C. Generators Can Also Be Made Available With Voltage
Regulation +/- 1%.
Inductive (Load) Type Diesel Gensets Are Suitable For Heavy Duty / High Torque
Load Applications Such As For Running Electric Motors, Submersible Pumpsets,
Air-Conditioners etc...
For Any Type of Long Duration High Torque Load, Technically Different Specification
& Site conditions, Diesel Genset Has To Be Selected Accordingly. For Such
Application Kindly contact US for Right Selection.
(iii) Wleding Generatos Are Specially Designed For Direct Welding Without Any
Transformer. It Has A Voltage Regulator To Adjust The Required Output voltage.
It Also Has The Provision For Domestic Application i.e. Lightening, Fans &
Other Light Duty Appliances Having Single Phase (50Hz & 10 U.P.F.) Low
Torque Loads etc...
(iv) These A.C.Generators / Welding Generators Are Suitable For Running Under
Ambient Temperature Less Than 40 Degree & Altitude Less Than 1000 Metres.
(v) Gross Weight Of Belt Driven Genset / Welding Genset Shown Above Includes
Weight Of Diesel Engine Packed in Wooden Case But A.C.Generator / Welding
Generator With M.S.Base Frame In Loose Condition. The Complete Unit Packed In
Single Wooden Case Would Result 7-12% Approx. Additional Increase In Total Gross
Weight.

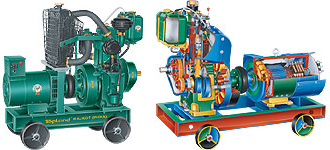

(vi) In Case, Directly Coupled Welding Genset Is Mounted On Rubber Wheel Trolley
Instead Of M.S.Base Frame, The Additional Nett / Gross Weight Will Be As Under :
(a) For Welding Genset With 1/2 cylinder Engine Mounted On 4 Rubber Wheel
Trolley 15 kgs. Extra
(b) For Welding Genset With 2 cylinder Engine Mounted On 6 Rubber Wheel Trolley
22.5 kgs. Extra
|
