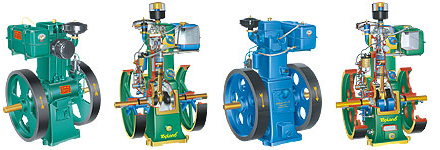

Diesel Engine - Slow Speed, Water-Cooled 5 to 20 HP

TECHNICAL DATA ( STANDARD ENGINES)
Sr.
No.		 Model
 No.		 Type & Mark Rated
Output
HP(kw)		 Rated
Speed
(RPM)		 No. Of
Cyl.		 Bore
x
Stroke(mm)		 Cubic Cap.
(cc) per
Cyl.		 Specific Fuel
Consrumption
At  Full Load
(SFC)		 Weight
g/
Kwh		 g/
bhph		 Nett
(kgs)		 Gross
(kgs)
1 10A1 IDI, TRB, CIP, CIG, ISI 5(3.7) 600 1 114.3  x  139.7 1433 268 197 310 420
2 10A IDI, TRB, CIP, CIG, ISI 6(4.4) 650 1 114.3  x  139.7 1433 268 197 310 420
3 10B IDI, BB, LOP, CIP, CIG   6(4.4) 650 1 114.3  x  139.7 1433 268 197 320 430
4 12A IDI, TRB, CIP, CIG, ISI 8(5.9) 850 1 114.3  x  139.7 1433 268 197 320 430
5 12B IDI, BB, LOP, CIP, CIG, ISI  8(5.9) 850 1 114.3  x  139.7 1433 268 197 330 440
6 12ADI IDI, TRB, AP, CIG, ISI 8(5.9) 850 1 114.3  x  139.7 1433 241 177 315 425
7 14A IDI, TRB, CIP, CIG, ISI 9.5(7.0) 1000 1 114.3  x  139.7 1433 268 197 330 440
8 19A IDI, TRB, CIP, CIG 10(7.35) 1000 1 120  x  139.7 1580 268 197 330 440
9 15A IDI, TRB, LOP, CIP, CIG, ISI 10(7.35) 1000 1 120  x  139.7 1580 268 197 340 450
10 15A1 IDI, TRB, LOP, CIP, CIG, ISI 8(5.9) 900 1 120  x  139.7 1580 268 197 340 450
11 15B IDI, BB, LOP, CIP, CIG  10(7.35) 1000 1 120  x  139.7 1580 268 197 345 455
12 16A IDI, TRB, LOPM CBW,CIP,CIG,ISI 10(7.35) 1000 1 120  x  139.7 1580 268 197 350 460
13 16A1 IDI, TRB, LOPM CBW,CIP,CIG,ISI  8(5.9) 900 1 120  x  139.7 1580 268 197 350 460
14 16ASD IDI, TRB, LOP, CBW, HFW, CIP, CIG, SDM, ISI 10(7.35) 1000 1 120  x  139.7 1580 268 197 375 485
15 16ADI DI, TRB, LOP, CBW, AP, CIG, ISI 10(7.35) 1000 1 120  x  139.7 1580 241 177 345 455
16 16ASDI DI, TRB, LOP, CBW, HFW, AP, CIG, SDM, ISI 10(7.35) 1000 1 120  x  139.7 1580 241 177 370 480
17 11A IDI, TRB, LOP, CBW, HFW, CIP, SG, ISI 12(8.8) 1000 1 127  x  139.7 1770 268 197 380 490
18 11A1 IDI, TRB, LOP, CBW, HFW, CIP, SG, ISI 10(7.35) 900 1 127  x  139.7 1770 268 197 380 490
19 17A IDI, TRB, LOP, CBW, HFW, CIP, SG 12(8.8) 1000 1 127  x  139.7 1770 268 197 390 515
20 17A1 IDI, TRB, LOP, CBW, HFW, CIP, SG 10(7.35) 900 1 127  x  139.7 1770 268 197 390 515
21 28A IDI, TRB, LOP, CBW, HFW, CIP, SG 14(10.3) 1000 1 127  x  160 2026 268 197 400 510
22 28A1 IDI, TRB, LOP, CBW, HFW, CIP, SG, ISI 10(7.35) 900 1 127  x  160 2026 268 197 400 510
23 29ADI DI,TRB, LOP,CBW,HFW, AP,SG 15(11.0) 1000 1 127  x  160 2026 241 177 395 505
24 29ADI1 DI,TRB, LOP,CBW,HFW, AP, SG, ISI 10(7.35) 900 1 127  x  160 2026 241 177 395 505
25 30ADI DI,TRB, LOP,CBW,HFW, AP, SG 16(11.8) 1000 1 130  x  160 2123 241 177 400 510
26 30ADI1 DI,TRB, LOP,CBW,HFW, AP, SG 10(7.35) 900 1 130  x  160 2123 241 177 400 510
27 18ADI DI,TRB,CBW,HFW,AP, CIG 18(13.2) 750 1 155  x  177.8 3353 241 177 565 710
28 18ADI2 DI,TRB,CBW,HFW,AP, CIG 20(14.7) 825 1 155  x  177.8 3353 241 177 565 710

Note : All Above Models Are Governing Class B1 (GCB)
  • IDI = Indirect Injection
  • TRB = Taper Roller Bearing
  • LOP = Lubricating Oil Pump
  • CIP = Cast Iron Piston
  • CIG = Cast Iron Cam Gear & Idler Gear
  • HFW = Heavy Flywheel
  • DI = Direct Injection
  • BB = Bush Bearing
  • CBW = Crankshaft Balance Weight
  • AP = Aluminium Piston
  • SG = Steel Cam Gear & Idler Gear
  • SDM = Super Deluxe Model
